Connecting peripherals

Your audio card works seamlessly with many external devices. To

connect these peripherals, refer to their relevant sections below.

Watching DVDs

Connecting a multichannel home theater receiver

If you have a multichannel home theater or A/V receiver, connect it

directly to the audio card's Line Out 1, Line Out 2, and Line Out 3 jacks

as shown below. For more information on multichannel home

theater receiver speaker connections, consult the User's Guide of

your multichannel home theater receiver.

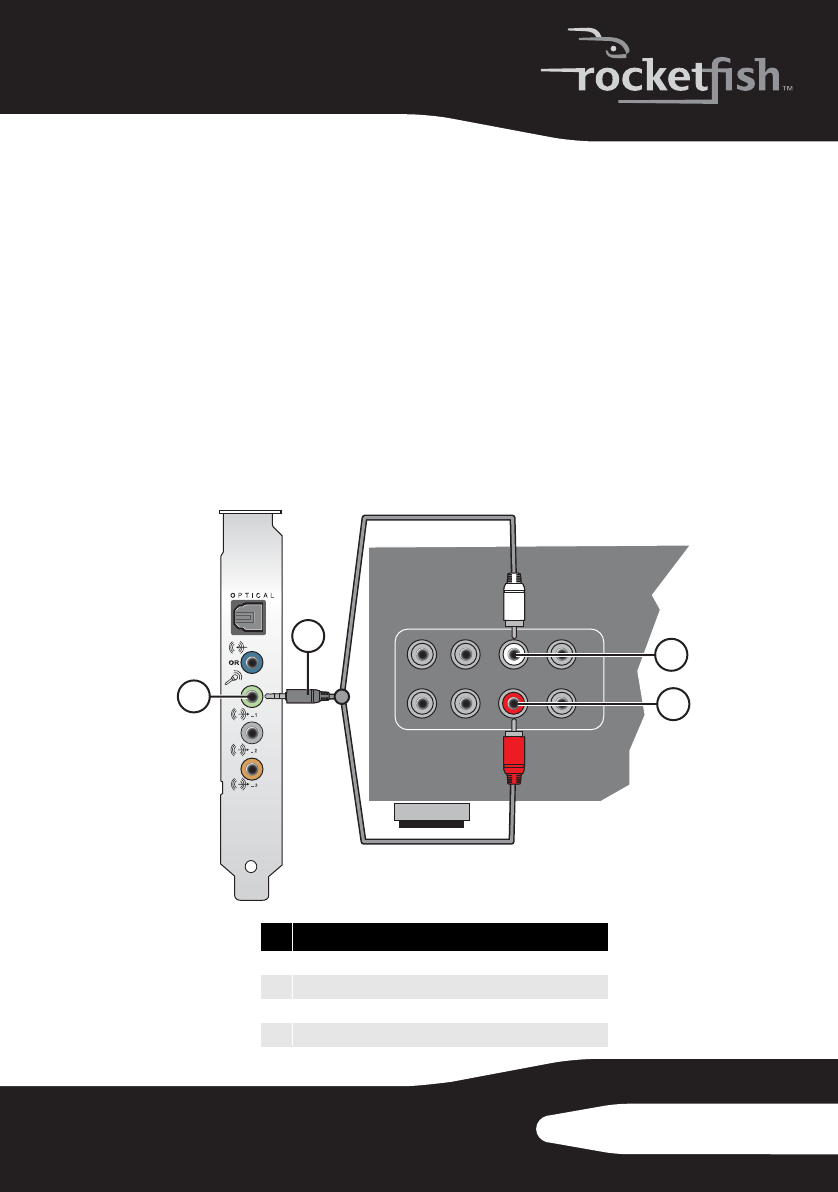

Front

# Jack, connector, or cable

1Line out 1 jack

2 3.50 mm (1/8 inch) stereo-to-RCA cable (not provided)

3 Left front input jack (A/V receiver)

4 Right front input jack (A/V receiver)

RF-51SDCD_09-0960 V3 ENG.fm Page 13 Friday, October 30, 2009 7:05 AM
